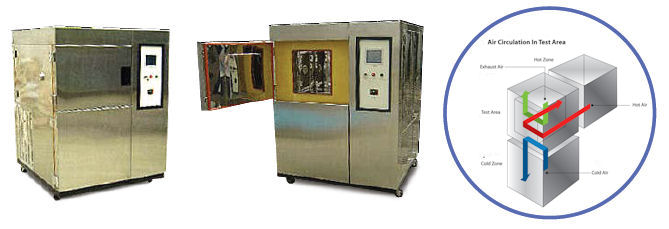

Model CT Series  - Air to Air Damper Type

Features

  • Air to Air

  • 2 or 3 zones design

  • maximum working zone size: 65x65x50cm (larger size also available on requests)

  • user friendly LCD touch screen controller

  • can set and save different program and pattern (max 100 pattern, with max 9999 cycle)

  • with RS232 for PC control (capable of controlling / editing / recording)

  • defrost time and cycle and be set

  • PLC Control with MCCB protection, phase protection, overheat protection

  • force air circulation

  • with USB data storage

  • with cable port

  • with casters



Model CT-49-A CT-80-A CT-150-A CT-200-A CT-49-B CT-80-B CT-150-B CT-200-B CT-49-C CT-80-C CT-150-C CT-200-C
Dimension (cm) 35x35x40 40x50x40 50x60x50 65x65x50 35x35x40 40x50x40 50x60x50 65x65x50 35x35x40 40x50x40 50x60x50 65x65x50
Hot Zone - Temperature Range

50 to 200degC

(300degC as option)

50 to 200degC

(300degC as option)

50 to 200degC

(300degC as option)

Working Zone - Temperature Range -35 to 180degC -55 to 180degC -60 to 180degC
Cold Zone - Temperature Range -10 to -40degC -10 to -60degC -10 to -70degC
Accuracy +/-1.5 degC
Transfer Time 1-3 min (adjustable)
Heat zone recovery time <3 mins
Cold zone recovery time

standard: 10 to 15mins

* shorter recovery time (<10mins) by using larger refrigeration system or LN2 is available*

Material All 304 stainless steel
Insulation PU & fiberglass wool
Heater S.S. heating Coil
Cooler Liquid Refrigerant R404 +R23,  air cool or water cool
Control LCD touch screen
Power Supply 3 phase 380Vac 50/60Hz (or 415Vac)
