Technical Data:

  • Temperature Range: -70 to 150C (with 180C as option)
  • Humidity Range: 20 to 98%RH (with 5% or 10%RH as option)
  • Accuracy: +/-0.5C ; +/-3%RH
  • Fluctation: +/-0.5C ; +/-3%RH
  • Uniformity: +/-0.5C ; +/-3%RH
  • Stability: +/-0.5C ; +/-3%RH
  • Resolution: 0.01C; 0.1%RH
  • Heating Rate: 3C (Standard),  (option with 5C/min or more)
  • Cooling Rate: 2C (Standard),  (option with 5C/min or more)
  • Power Supply: 3phase 400Vac 50/60Hz
  • Meet EN-61010-1 Safety of Machine, CNS, JIS, ISO and ASTM standard
  • With CE Certificate

Key Features: (Click here for features photos)

  • Controller: TEMI2700 LCD touch screen (7.5 inch) digital display controller, programmable

  • Mode: Fix or Program mode

  • PLC microprocessor, PID control of temperature and humidity

  • Both Temperature and humidity are programmable (can have 120pattern, 1200 segment, can repeat pattern, segment or part of segment).

  • Trend graphic display

  • Error history recording

  • Controller password protection

  • Multi-lingual display (English, Chinese, Japanese, Korean, Russian)

  • With data storage on SD flash card

  • With RS232 output to computer

  • With Ethernet connection

  • English window Software (for PC editing, control, data storage)

  • Sensors: PT100 and  digital humidity probe

  • Interior: 18-8 Cr-Ni stainless steel 304 (SUS304) or color coated sheet metal

  • Exterior: 18-8 Cr-Ni stainless steel 304 (SUS304) or color coated sheet metal

  • Insultation: hard urethane foam, 100mm thickness

  • Single door or doube-wing doors

  • Reinforced floor for heavy loading

  • With Viewing Window

  • Entry cable ports (50, 80, 100 or 150mm diameter)

  • Auto-water refill valve and filter

  • Extra large water storage tank

  • Pressure relief vent

  • Air cooled  or water cooled condenser

  • With ramp

  • Standard: meet EN60204 safety of machine, CNS, JIS, ISO and ASTM standard

Safety Devices

  • With thermostats (prevent overheat)

  • Circuit overcurrent protection

  • short-circuit protection

  • Protection (MCCB circuit protection, phase protection, overheat, overcurrent etc)

  • speciment power supply control terminal (time signal)

  • System alarm display

  • Absolute upper/lower limit setting

  • phase error protection

  • Fan over current protection

  • Heater over current protection

  • Heater short-circuit protection

  • Compressor over currect protection

  • Compressor over pressure protection

  • Compressor short circuit protection

  • Humidifier over current protection

  • Humidifier over heat protection

  • Humidifer water level detection

  • Water tank no water warning

Option

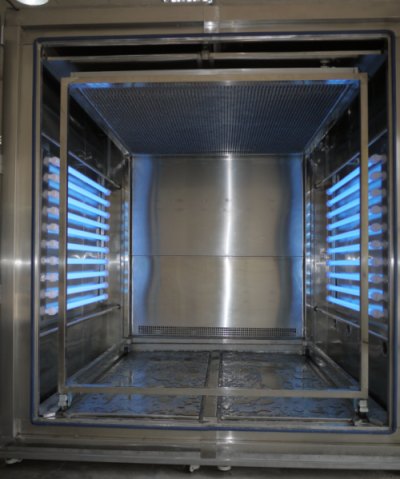

  • Built-in with other accessories, such as UV lamp, rain drop, etc

  • Remote control and monitoring

  • Water purifier

  • Variable wind speed control

  • With water tower or chiller

  • Gas display (e.g. CO, CO2, O2)

Model Number Capacity LCD Touch Screen Programmable
(Temperature)
Programmable
(Humidity)
Temperature Range Humidity Range Internal Dimension
HxWxD (cm)
JTH-1500 1500L yes yes yes 0 to 150 degC 20 to 98% RH 150x100x100
JTH-1500J 1500L yes yes yes -20 to 150 degC 20 to 98% RH 150x100x100
JTH-1500R 1500L yes yes yes -40 to 150 degC 20 to 98% RH 150x100x100
JTH-1500Z 1500L yes yes yes -70 to 150 degC 20 to 98% RH 150x100x100

JTH-2000 2000L yes yes yes 0 to 150 degC 20 to 98% RH 100x200x100
JTH-2000J 2000L yes yes yes -20 to 150 degC 20 to 98% RH 100x200x100
JTH-2000R 2000L yes yes yes -40 to 150 degC 20 to 98% RH 100x200x100
JTH-2000Z 2000L yes yes yes -70 to 150 degC 20 to 98% RH 100x200x100

JTH-2500 2500L yes yes yes 0 to 150 degC 20 to 98% RH 100x250x100
JTH-2500J 2500L yes yes yes -20 to 150 degC 20 to 98% RH 100x250x100
JTH-2500R 2500L yes yes yes -40 to 150 degC 20 to 98% RH 100x250x100
JTH-2500Z 2500L yes yes yes -70 to 150 degC 20 to 98% RH 100x250x100

JTH-4500 4500L yes yes yes 0 to 150 degC 20 to 98% RH 150x150x200
JTH-4500J 4500L yes yes yes -20 to 150 degC 20 to 98% RH 150x150x200
JTH-4500R 4500L yes yes yes -40 to 150 degC 20 to 98% RH 150x150x200
JTH-4500Z 4500L yes yes yes -70 to 150 degC 20 to 98% RH 150x150x200

JTH-6000 6000L yes yes yes 0 to 150 degC 20 to 98% RH 150x200x200
JTH-6000J 6000L yes yes yes -20 to 150 degC 20 to 98% RH 150x200x200
JTH-6000R 6000L yes yes yes -40 to 150 degC 20 to 98% RH 150x200x200
JTH-6000Z 6000L yes yes yes -70 to 150 degC 20 to 98% RH 150x200x200

JTH-8800 8800L yes yes yes 0 to 150 degC 20 to 98% RH 220x200x200
JTH-8800J 8800L yes yes yes -20 to 150 degC 20 to 98% RH 220x200x200
JTH-8800R 8800L yes yes yes -40 to 150 degC 20 to 98% RH 220x200x200
JTH-8800Z 8800L yes yes yes -70 to 150 degC 20 to 98% RH 220x200x200

JTH-12500 6000L yes yes yes 0 to 150 degC 20 to 98% RH 200x250x250
JTH-12500J 6000L yes yes yes -20 to 150 degC 20 to 98% RH 200x250x250
JTH-12500R 6000L yes yes yes -40 to 150 degC 20 to 98% RH 200x250x250
JTH-12500Z 6000L yes yes yes -70 to 150 degC 20 to 98% RH 200x250x250

JTH-22000 22000L yes yes yes 0 to 150 degC 20 to 98% RH 280x280x280
JTH-22000J 22000L yes yes yes -20 to 150 degC 20 to 98% RH 280x280x280
JTH-22000R 22000L yes yes yes -40 to 150 degC 20 to 98% RH 280x280x280
JTH-22000Z 22000L yes yes yes -70 to 150 degC 20 to 98% RH 280x280x280


Note1 : With -H temperature up to 180C
Note2 : Our standard Humidity Range is 20 to 98%RH. (Option: 10%RH)




Custom size available on request

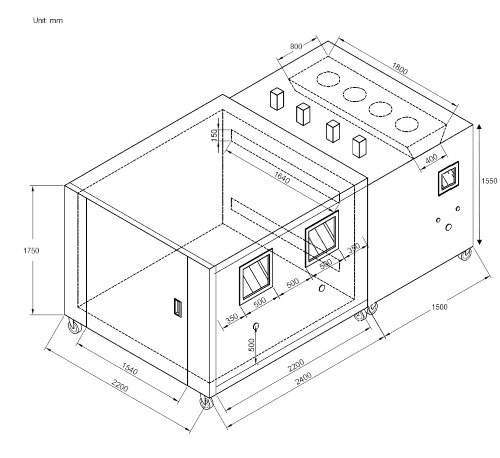

  • Drawing will be provided for confirmation before production

  • Custom design with other testing
  • e.g. Temperature/humidity control with dust testing/ uv & rain drop etc
